GHMPR 25

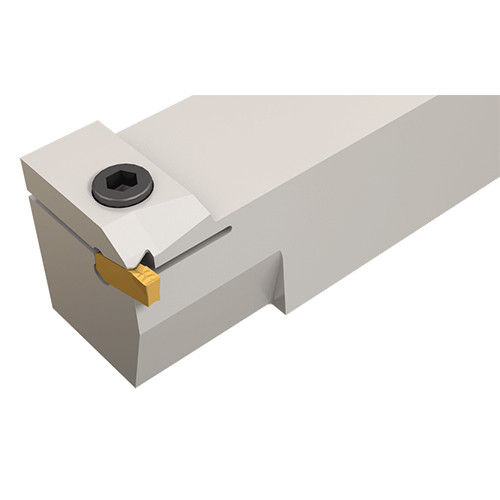

CUT-GRIP, perpendicular toolholders for shallow radial and axial grooving. Light turning, small depth of cut (ap=0.1-0.5 mm), and small feed (f=0.1 mm/rev).

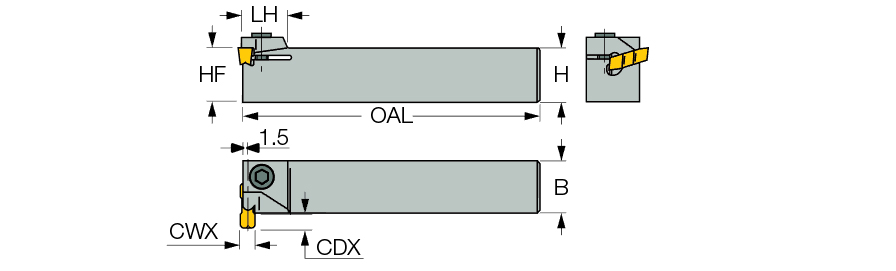

| Cutting Width Maximum (CWX) | 6.4 mm | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 4.8 mm | Application | | Ext. Grooving | Face Grooving Along Shaft | Pulley V Grooving | Threading (Ext.) Groove Turn T | |
| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Tool Type | Turn-Groove Tools |
| Head Length (LH) | 17 mm | Measurement Type | Metric |
Product Features
| Family Description | CUT-GRIP, perpendicular toolholders for shallow radial and axial grooving. Light turning, small depth of cut (ap=0.1-0.5 mm), and small feed (f=0.1 mm/rev). | Country of Origin | Israel |

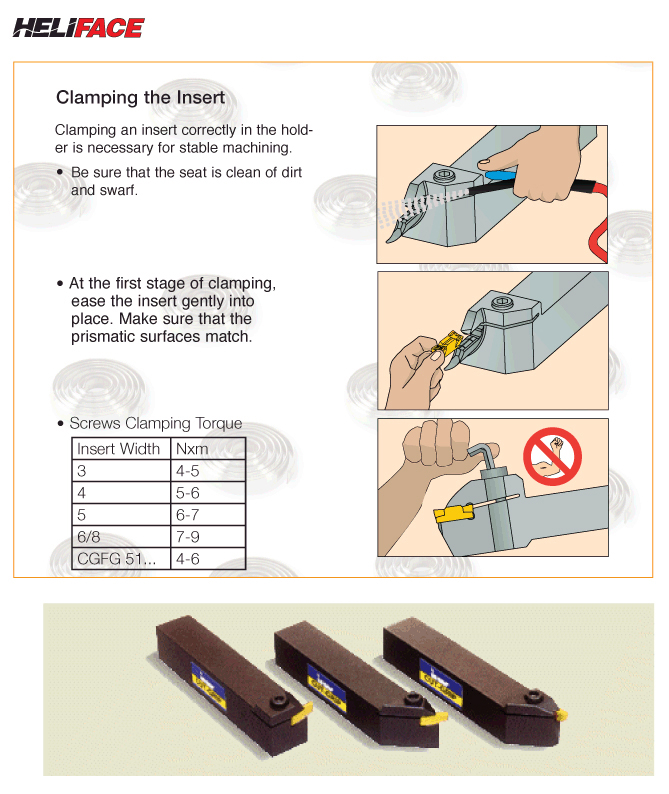

| Remarks | For insert clamping instructions, click on More Info. To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
1.567
