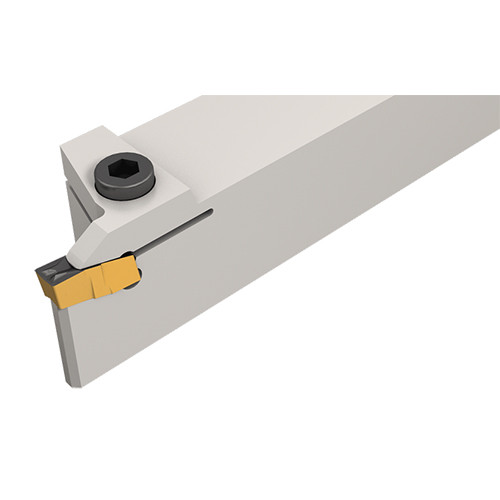

GHDL 20-4
External tools for turning, grooving and parting.

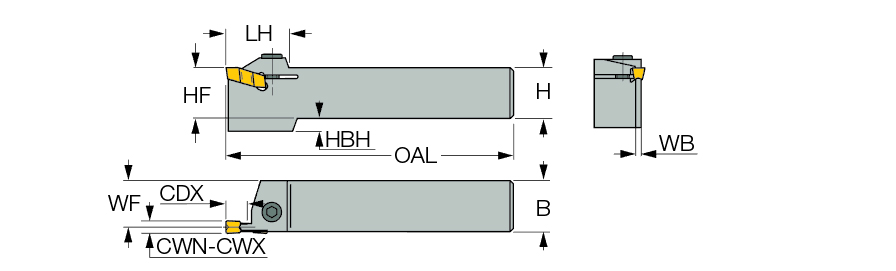

| Cutting Width Minimum (CWN) | 4 mm | Overall Length (OAL) | 120 mm |
| Cutting Width Maximum (CWX) | 5 mm | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 10 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Pulley V Grooving | Threading (Ext.) Groove Turn T | |
| Shank Height (H) | 20 mm | Body Material | Steel |
| Shank Width (B) | 20 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 18.4 mm | Measurement Type | Metric |
| Head Length (LH) | 26 mm |
Product Features
| Family Description | External tools for turning, grooving and parting. | Country of Origin | Israel |

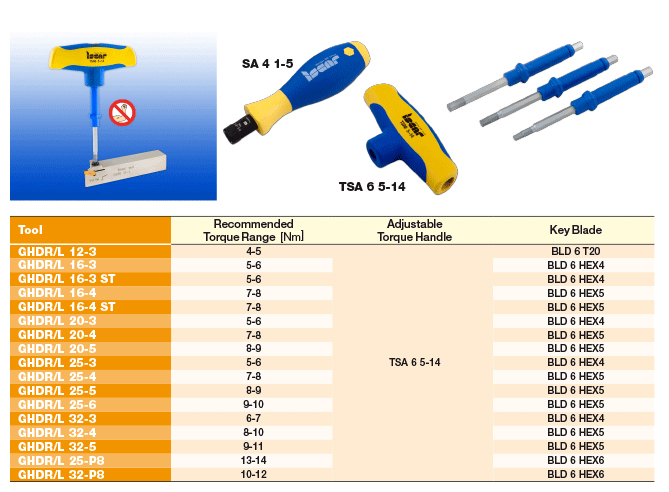

| Remarks | For using TIP and GPV inserts, toolholder seat needs to be modified according to insert profile to ensure clearance. When using GIVR/L inserts, tool holder's seat needs to be modified To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
0.864
