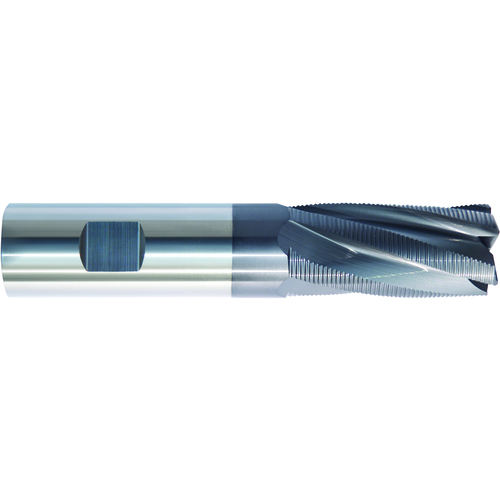

1″ × 1″ × 2 5/8″ × 5″ 0.0250″ C/R 5 Flute Single End Carbide Roughing End Mill-ALTiN Series/List #5971T
| Cutting Diameter (DC) | 1″ | Corner Radius (RE) | 0.025″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Tool Type | Single End |
| Depth of Cut Maximum (APMX) | 2-5/8″ | Length Group | Long |
| Overall Length (OAL) | 5″ | Flute Type | Fine Pitch |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Style | Roughing |
| Flute Count (NOF) | 5 | Decimal Equivalent | 1″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Corner Radius | Series/List # | 5971T |
| Usable Length (LU) | 2-5/8″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.025″ |
| Application | Roughing |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.72
