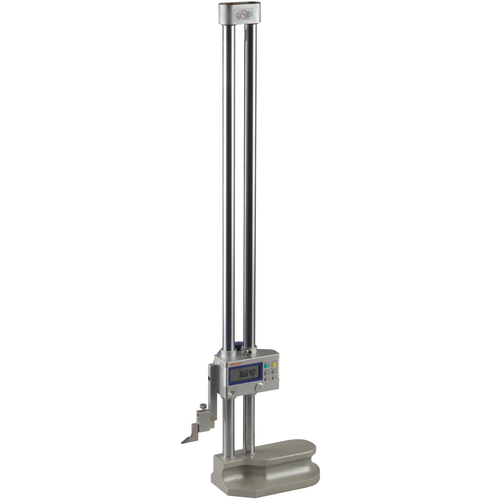

Electronic Twin Beam Height Gage w / SPC Output - 18″ / 450 mm-0.0005″ / 0.01 mm Resolution
| Type | Electronic Twin Beam Height Gage | Model No | 192-631-10 |
| Resolution | 0.0005″ / 0.01 mm | Maximum Measurement | 18″ / 450 mm |
Product Features
| Remarks | •Heavy Duty with 5 Pc. Digimatic Height Gages •The latest generation of height Gages from MITUTOYO have instant, easy-to-see, error-free LCD readout and may be used in SPC Systems. •Extra-rugged, two-column construction for more precise upward and downward slider movements. Switchable coarse / fine adjustment through large feed wheel. •Supplied with carbide-tipped scriber (standard accessory). For maximum performance, optional two-directional touch probe No. 192–008 is recommended. •The two-directional touch probe features built-in probe diameter compensation to allow top and bottom land measurement automatically. Probe diameter is .118″. •Zero-set standby, hold standby and automatic hold features are initiated when optional two-directional tough probe No. 192–008 is mounted on the height Gage. •Supplied with three (Size AA) batteries. Battery life is 900 continuous hours. | Country of Origin | Japan |
Shipping Info
LocalField10
1
Hazard Code
A
Shipping Notes
Additional Charges
Package Weight
19.18
