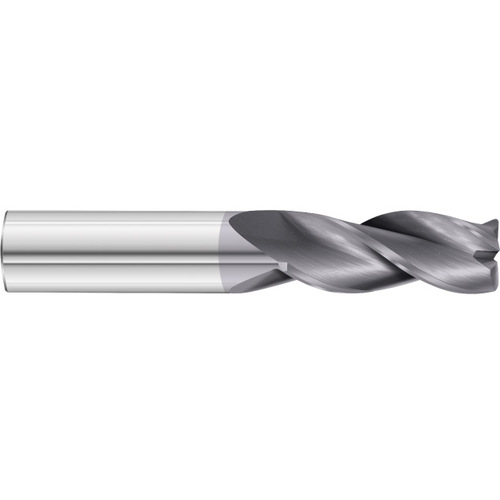

Corner Radius End Mill; 1/4″ Dia. × 3/4″ LOC × 1/4″ Shank Dia. × 3/4″ OAL ; 3 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/4″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 3/4″ | Application | Roughing |
| Overall Length (OAL) | 3/4″ | Corner Radius (RE) | 0.015″ |
| Cutting Edge Material | Carbide | Tool Type | Single-End |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.25″ |
| Flute Helix Angle (FHA) | 35 Degrees |
Product Features
| Remarks | |
Country of Origin | UNITED STATES |
Shipping Info
Package Length
1.00000
Package Width
1.00000
Package Height
1.00000
Package Weight
.007
