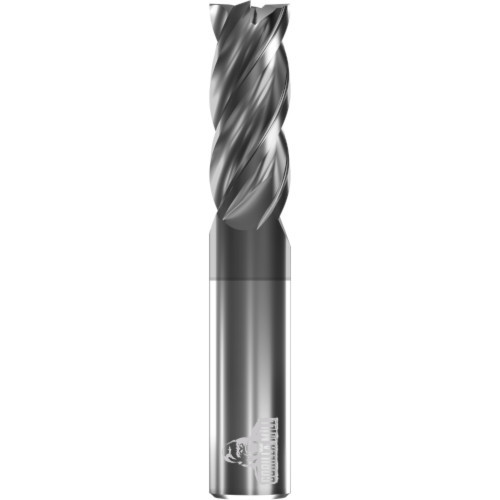

GORILLA MILL, YETI, FLAT, 4 FLUTE, 3/16''DIA, 5/8''LOC, 2''OAL, GMS² COATED EDP # 00196
| Cutting Diameter (DC) | 3/16 | Applicable Material | Inconel, Waspaloy, Hastelloy, Rene, Stellite, 17-4 SS, 15-5 SS, 13-8 SS, and Titanium. |
| Connection Diameter Machine Side (DCONMS) | 3/16 | Grade | SUPER BITCHIN' |
| Depth of Cut Maximum (APMX) | 5/8 | Tool Type | CARBIDE END MILL |
| Overall Length (OAL) | 2 | Length Group | STANDARD |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.1875 |
| Coating | GMS² | Corner Radius (RE) / Chamfer Width (CHW) | NA |
| Flute Count (NOF) | 4 | Trade Name | YETI |
| Shank Type | CYLINDRICAL | Cutting Diameter Tolerance | Cut Dia +.000/-.002 |
| End Shape | SQUARE | Shank Diameter Tolerance (TCDMM) | Shank Dia -.0001/-.0005 |
Product Features
| Country of Origin | UNITED STATES |
Shipping Info
Package Weight
0.028
