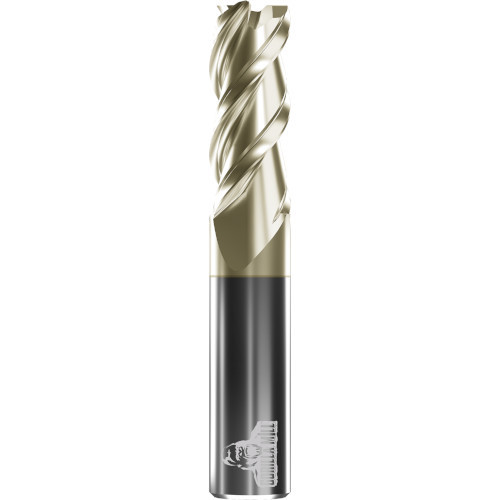

GORILLA MILL, SILVERBACK, FLAT, 3 FLUTE, 1/2''DIA, 1-1/4''LOC, 3''OAL, ZRN COATED EDP # 20384
Variable flute. Engineered to repel aluminum. For roughing and finishing of non-ferrous materials, aluminum, copper, brass, plastic, etc. High velocity, high material removal rate. Center cutting. Produced with the highest Transverse Rupture Strength (TRS) nano-grain carbide substrate available. Available in special diameters, lengths and completely resharpenable.
| Cutting Diameter (DC) | 1/2 | Applicable Material | Non-ferrous materials, Aluminum, Copper, Brass, Plastic, etc. |
| Connection Diameter Machine Side (DCONMS) | 1/2 | Grade | HIGH PERFORMANCE |
| Depth of Cut Maximum (APMX) | 1 1/4 | Tool Type | CARBIDE END MILL |
| Overall Length (OAL) | 3 | Length Group | STANDARD |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.500 |
| Coating | ZrN | Corner Radius (RE) / Chamfer Width (CHW) | NA |
| Flute Count (NOF) | 3 | Trade Name | SILVERBACK |
| Shank Type | CYLINDRICAL | Cutting Diameter Tolerance | Cut Dia +.000/-.002 |
| End Shape | SQUARE | Shank Diameter Tolerance (TCDMM) | Shank Dia -.0001/-.0005 |
Product Features
| Family Description | Variable flute. Engineered to repel aluminum. For roughing and finishing of non-ferrous materials, aluminum, copper, brass, plastic, etc. High velocity, high material removal rate. Center cutting. Produced with the highest Transverse Rupture Strength (TRS) nano-grain carbide substrate available. Available in special diameters, lengths and completely resharpenable. | Country of Origin | UNITED STATES |
Shipping Info
Package Weight
0.265
