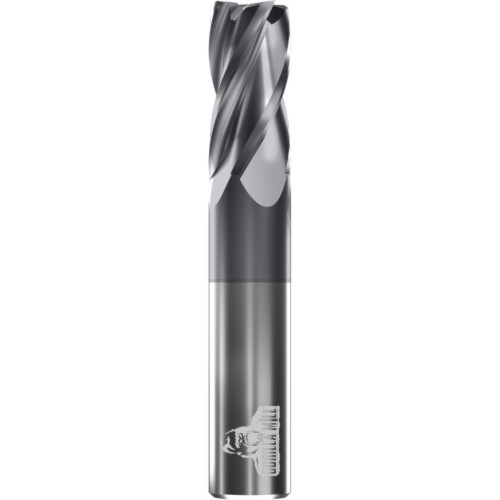

CARBIDE END MILL, FLAT, 4 FLUTE, 1/8''DIA, 1/2''LOC, 1-1/2''OAL, TIALN COATED EDP # 70715
| Cutting Diameter (DC) | 1/8 | Applicable Material | All Materials |
| Connection Diameter Machine Side (DCONMS) | 1/8 | Grade | STANDARD |
| Depth of Cut Maximum (APMX) | 1/2 | Tool Type | CARBIDE END MILL |
| Overall Length (OAL) | 1 1/2 | Length Group | STANDARD |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.1250 |
| Coating | TiALN | Corner Radius (RE) / Chamfer Width (CHW) | NA |
| Flute Count (NOF) | 4 | Trade Name | PRIMATE |
| Shank Type | CYLINDRICAL | Cutting Diameter Tolerance | Cut Dia +.000/-.001 |
| End Shape | SQUARE | Shank Diameter Tolerance (TCDMM) | Shank Dia -.0001/-.0005 |
Product Features
| Country of Origin | UNITED STATES |
Shipping Info
Package Weight
0.012
