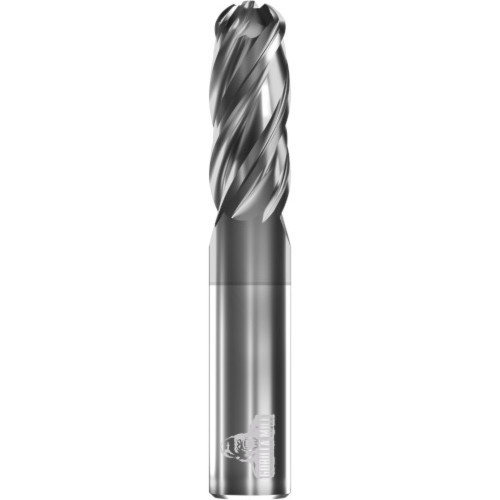

GORILLA MILL, BALL, 4 FLUTE, 1/4''DIA, 3/4''LOC, 2-1/2''OAL, GMX-35 COATED EDP # 10247
| Cutting Diameter (DC) | 1/4 | Corner Radius Tolerance (+/-) (RETOL) | Cut Dia +.000/-.002, Shank Dia -.0001/-.0005, LOC +.025/+.050, OAL +/-.050 |
| Connection Diameter Machine Side (DCONMS) | 1/4 | Tool Type | HIGH PERFORMANCE |
| Depth of Cut Maximum (APMX) | 3/4 | Length Group | STANDARD |
| Overall Length (OAL) | 2 1/2 | End Shape | BALLNOSE |
| Cutting Edge Material | Carbide | Style | GORILLA MILL |
| Coating | GMX-35 | Decimal Equivalent | 0.2500 |
| Flute Count (NOF) | 4 |
Product Features
| Remarks | Variable flute and index design reduces chatter and vibration. Recommended for aggressive machining applications in allmaterials. including, stainless, inconel, titanium, tool steels and hardened materials. Should be run at specific parameters. Produced with the highest Transverse Rupture Strength (TRS) nano-grain carbide substrate available. | Country of Origin | US |
Shipping Info
Package Weight
0.061
