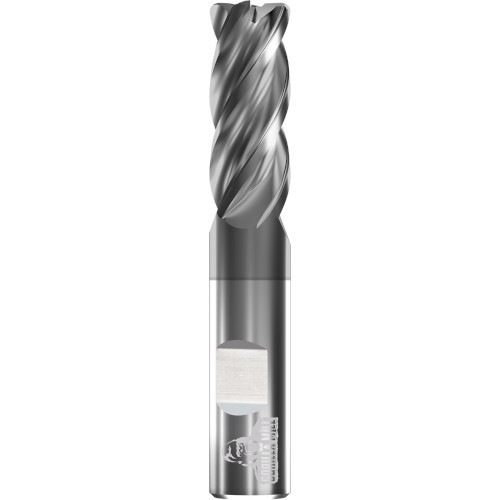

GORILLA MILL, YETI, RAD, 4 FLUTE, 1/2''DIA, 1-1/4''LOC, 3''OAL, .120''RAD, WELDON FLAT, GMS² COATED EDP # 00113
| Cutting Diameter (DC) | 1/2 | Applicable Material | Inconel, Waspaloy, Hastelloy, Rene, Stellite, 17-4 SS, 15-5 SS, 13-8 SS, and Titanium. |
| Connection Diameter Machine Side (DCONMS) | 1/2 | Grade | SUPER BITCHIN' |
| Depth of Cut Maximum (APMX) | 1 1/4 | Tool Type | CARBIDE END MILL |
| Overall Length (OAL) | 3 | Length Group | STANDARD |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.500 |
| Coating | GMS² | Corner Radius (RE) / Chamfer Width (CHW) | 0.120 |
| Flute Count (NOF) | 4 | Trade Name | YETI |
| Shank Type | WELDON FLAT | Cutting Diameter Tolerance | Cut Dia +.000/-.002 |
| End Shape | RADIUS | Shank Diameter Tolerance (TCDMM) | Shank Dia -.0001/-.0005 |
Product Features
| Family Description | Based off the original Patented 4-flute Gorilla Mill, the Gorilla Mill Yeti is built tough for heavy roughing in all materials especially high temperature alloys. Its geometric enhancements allow for work on difficult-to-machine materials including: Inconel, Waspaloy, Hastelloy, Rene, Stellite, 17-4 SS, 15-5 SS, 13-8 SS, and Titanium. The Gorilla Mill Yeti is a monster in full slotting applications with very large material removal rates in all materials. Available in special diameters, lengths and completely resharpenable. | Country of Origin | UNITED STATES |
Shipping Info
Package Weight
0.255
