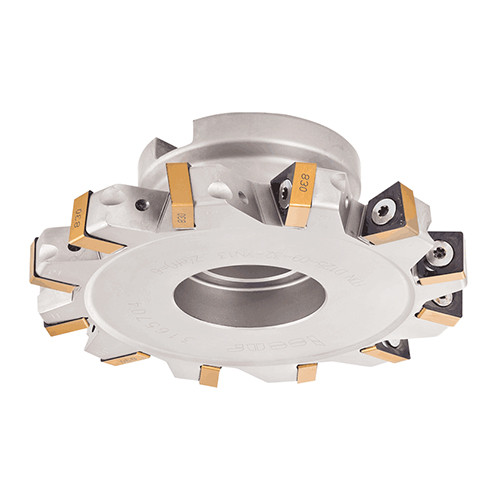

FDN D125-14-32-XN13
Full slot flange type, slotting cutters carrying XNMU 1306 square inserts with 4 right- and 4 left-hand cutting edges.

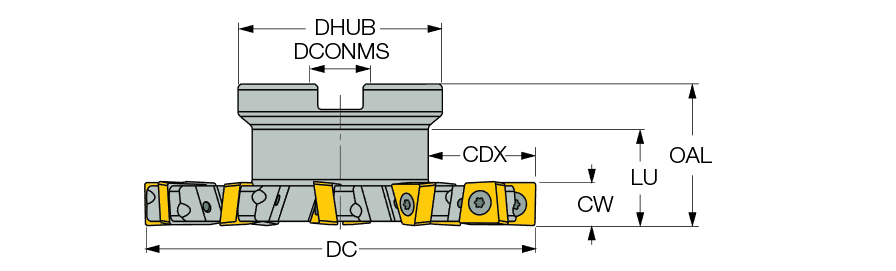

| Cutting Diameter (DC) | 125 mm | Overall Length (OAL) | 45 mm |
| Cutting Item Count (CICT) | 12 | Master Insert Identification (MIID) | XNMU 1306 |
| Peripheral Effective Cutting Edge Count (ZEFP) | 12 | Application | | Bottom Shouldering | Facing | Shouldering | Side Slotting | Slotting | T Slotting | |

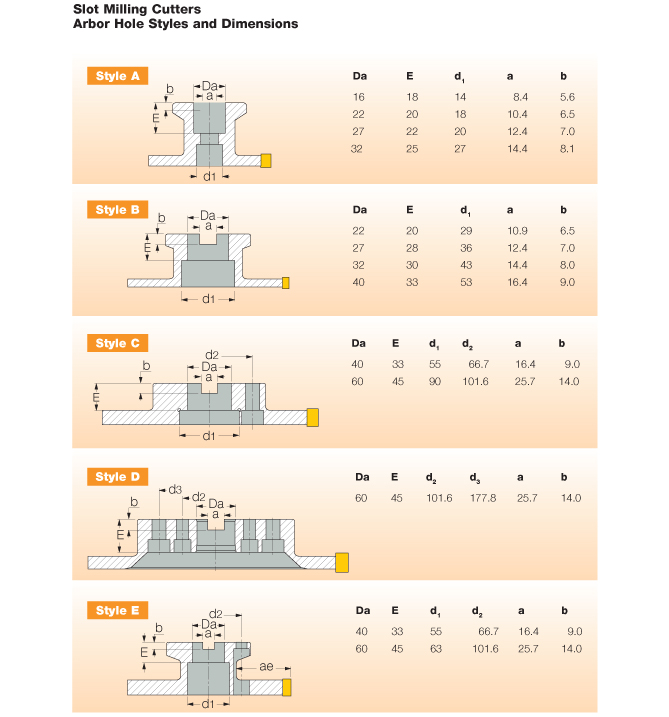

| Depth of Cut Maximum (APMX) | 14 mm | Arbor Style | B |
| Cutting Depth Maximum (CDX) | 33 mm | Tool Type | Double-sided slotting cutters |
| Hub Diameter (DHUB) | 65 mm | Measurement Type | Metric |
| Usable Length (LU) | 30.5 mm | Body Material | Steel |
| Flute Count (NOF) | 12 |
Product Features
| Family Description | Full slot flange type, slotting cutters carrying XNMU 1306 square inserts with 4 right- and 4 left-hand cutting edges. | Country of Origin | Israel |
Shipping Info
Package Weight
2.820
